BAT-3S+ Deep Thermal Tecar Therapy Machine

As an innovative flagship addition to our medical physical therapy and rehabilitation machine series, the MNLT BAT-3S+ (Fever Master / DEEPBA System) bridges the clinical gap between sports physiotherapy, deep visceral fat reduction, and non-surgical facial anti-aging. Designed for high-turnover aesthetic clinics, rehabilitation centers, and medspas, this compact multi-modality platform enables practitioners to transition from superficial collagen remodeling to deep myofascial release within seconds-achieving swift capital payback within 30 to 60 days.

Core Technology & Engineering Innovations

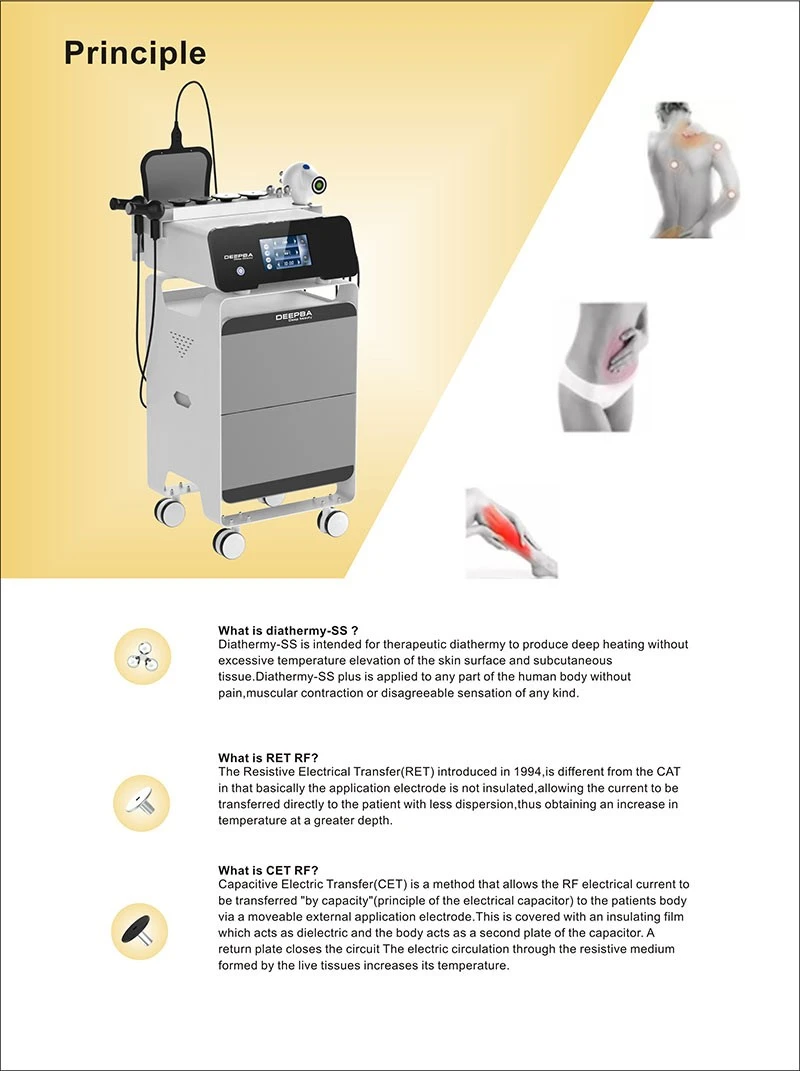

1. Dual-Pathway Targeted Radiofrequency (CET vs. RET)

Capacitive Electric Transfer (CET Mode): Uses insulated ceramic/polymer-coated electrode heads (D30, D60, D80) to concentrate electromagnetic flux within superficial vascular and muscular layers (3–5 cm depth), accelerating microcirculation and stimulating neocollagenesis.

Resistive Electric Transfer (RET Mode): Utilizes non-insulated medical-grade stainless steel electrodes (D30, D60, D80) to penetrate high-impedance deep biological structures (visceral fat deposits, thick muscle bundles, tendons, ligaments, and periosteum) up to 8–12 cm depth.

2. Biomechanical RF Fascia Blade (IASTM Integration)

Ergonomic Stainless Steel Contour Blade: Connects directly to the RET output channel, delivering targeted endogenous thermal energy simultaneously with mechanical soft tissue mobilization.

Scar Tissue & Adhesion Breakdown: Accelerates myofascial decompression, relieves chronic musculoskeletal tension, softens post-operative fibrotic tissue, and shortens sports recovery time by up to 50%.

3. 3R Motorized Grease Spinning Applicator

Active Mechanical Kneading: Incorporates dual interchangeable multi-sphere heads (Trumpet/Small and Standard/Large) with 5-speed bidirectional rotation (clockwise and counterclockwise).

Synergistic Cellulite Disruption: Combines deep RF hyperthermia with motorized mechanical rolling to break stubborn localized fat nodules, improve lymphatic drainage, and eliminate orange-peel skin texture.



Intelligent Preheated Return Plate & Thermal Feedback Guard

Preheated Negative Plate: Features a 15-minute dedicated pre-warm cycle, warming the contact surface before therapy begins to enhance blood perfusion and patient compliance.

Real-Time Digital Temperature Monitoring: Constantly displays contact heat between 35°C and 42°C. Instant color-coded visual warning (numerical value turns bright red) prevents hot spots during continuous scanning.



Clinical Indications & Protocol Guidelines

Clinical Indications

Physiotherapy & Sports Rehabilitation: Acute and chronic tendonitis, neck and lumbar back pain, muscle spasms, joint stiffness, bursitis, and athletic fatigue recovery.

Deep Body Sculpting & Cellulite Reduction: Visceral fat mobilization, abdominal circumference reduction, gluteal lifting, thigh smoothing, and post-liposuction lymphatic drainage.

Facial Tightening & Neocollagenesis: Double chin reduction, nasolabial fold smoothing, jawline contouring, skin laxity firming, and lymphatic fluid decongestion.

Recommended Clinical Protocol Breakdown

Treatment Zone	Mode & Applicator	Energy Depth / Level	Duration	Expected Clinical Outcome
Facial Firming & Neck	CET Head (D30/D60)	Shallow / Levels 2–4	15–20 Mins	Immediate tightening, lymphatic drainage, collagen renewal
Abdominal Visceral Fat	RET Head (D60/D80)	Deep / Levels 4–8	20–30 Mins	Deep thermal lipolysis, circumference reduction
Myofascial Back & Neck	RF Fascia Blade	Middle–Deep / Levels 3–6	15–20 Mins	Rapid myofascial release, pain relief, adhesion clearance
Thigh & Gluteal Cellulite	3R Grease Spinning	Rotation Gear 2–4 / Levels 3–7	20–30 Mins	Mechanical fat kneading, improved microcirculation, smoothing

Clinical Synergy Tip: For comprehensive physical recovery and post-treatment tissue repair, pairing the BAT-3S+ with our mild hyperbaric oxygen chamber system accelerates cellular metabolic clearance and athletic regeneration.



Smart Operation & Clinic Workflow

High-Definition Color Touchscreen: Intuitive interface with single-tap switching between CET, RET, Fascia Blade, and 3R rotation sub-programs.

Triple Depth Modulation: One-key selection across "Shallow", "Middle", and "Deep" power dispersion algorithms to match individual tissue impedance.

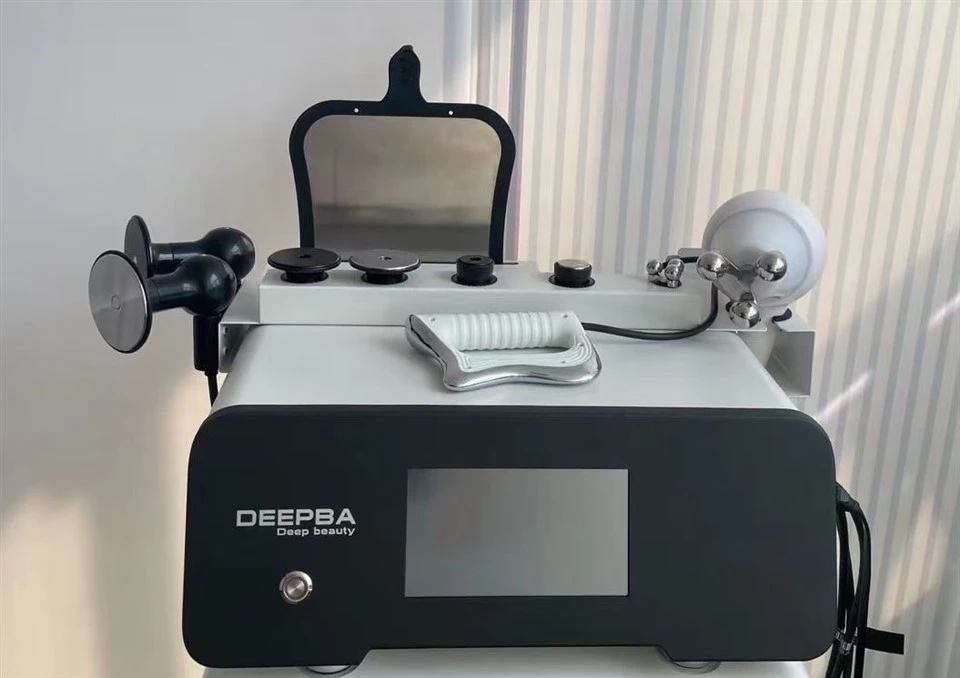

Zero Operator Hand Strain: Lightweight, balanced handle grips with a modular top-mounted acrylic accessory rack keeping all 6 electrode heads and probes neatly organized and immediately accessible.

Quick-Access Dual Controls: One-touch Start/Pause buttons on both the front panel and digital UI ensure smooth, uninterrupted treatment workflows.

Technical Specifications

Technical Parameter	Engineering Specification
System Classification	MNLT BAT-3S+ Deep Thermal Tecar Therapy Platform
Operational Modalities	CET (Capacitive) + RET (Resistive) + RF Fascia Blade + 3R Motorized Roller

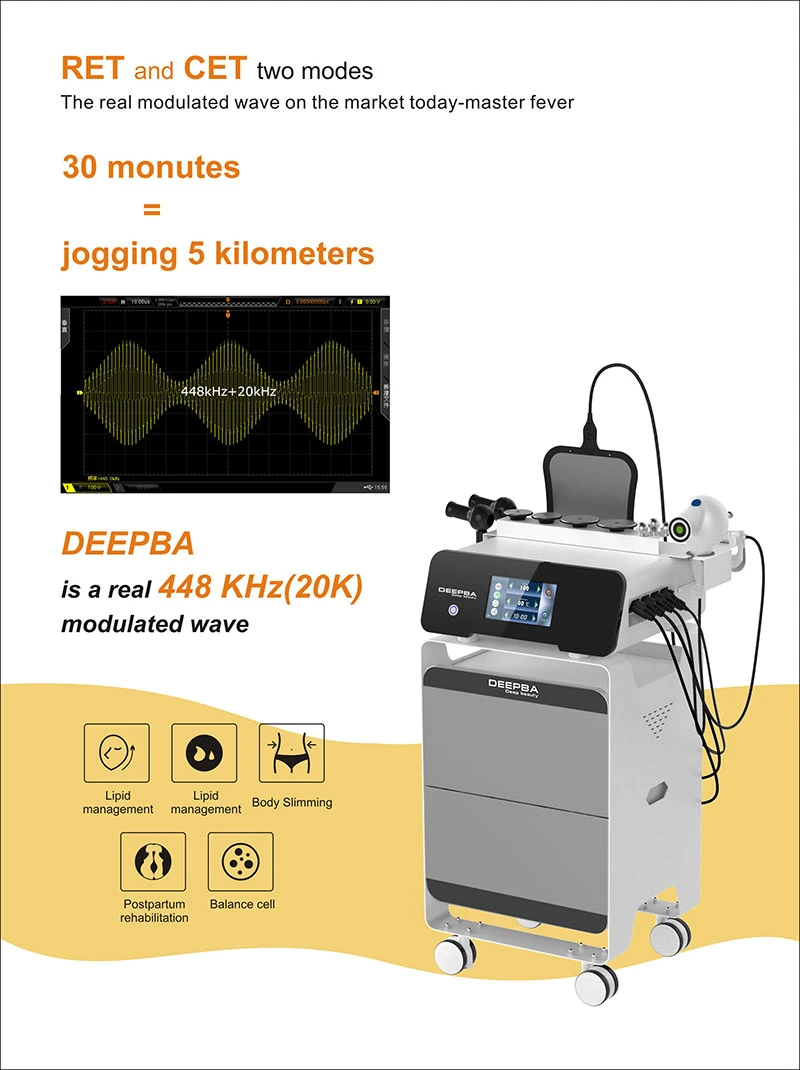

Working Frequency	Monopolar Deep Hyperthermia RF (Targeted Deep/Shallow Penetration)
Total System Power	550 VA
Temperature Regulation	35°C to 42°C (Default: 37°C) with Real-Time Handle Sensor Feedback
Thermal Safety Alert	Automatic visual warning (red display alert) above target threshold

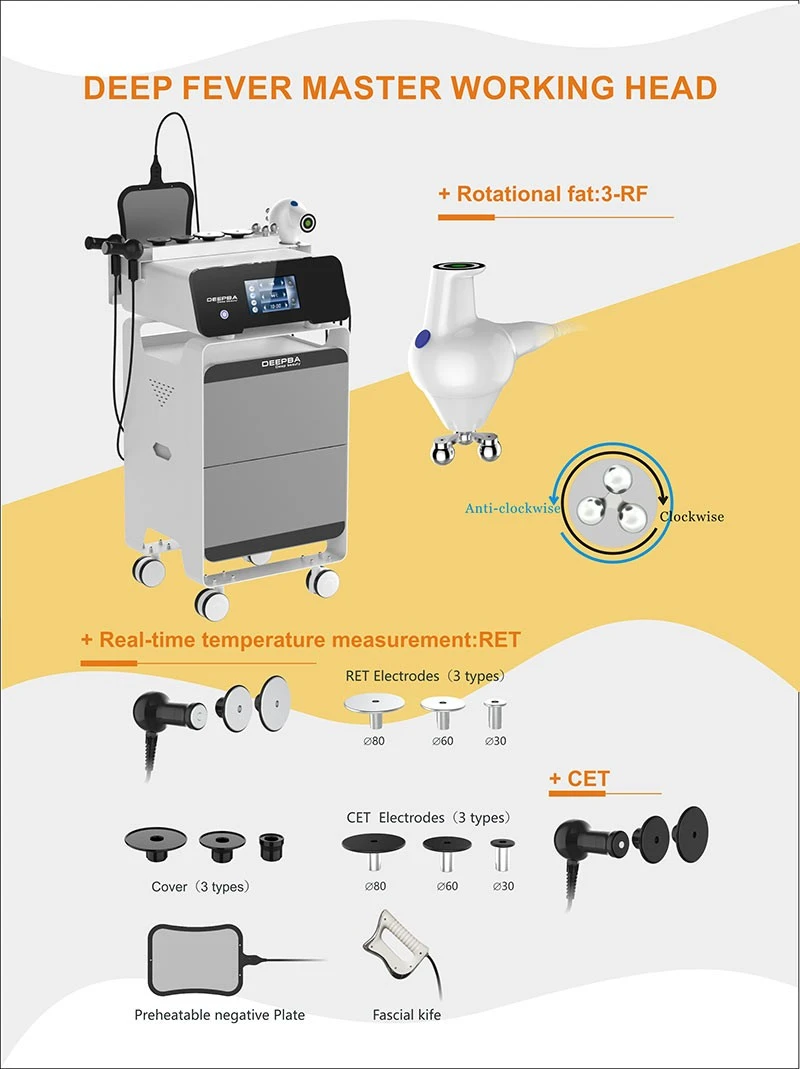

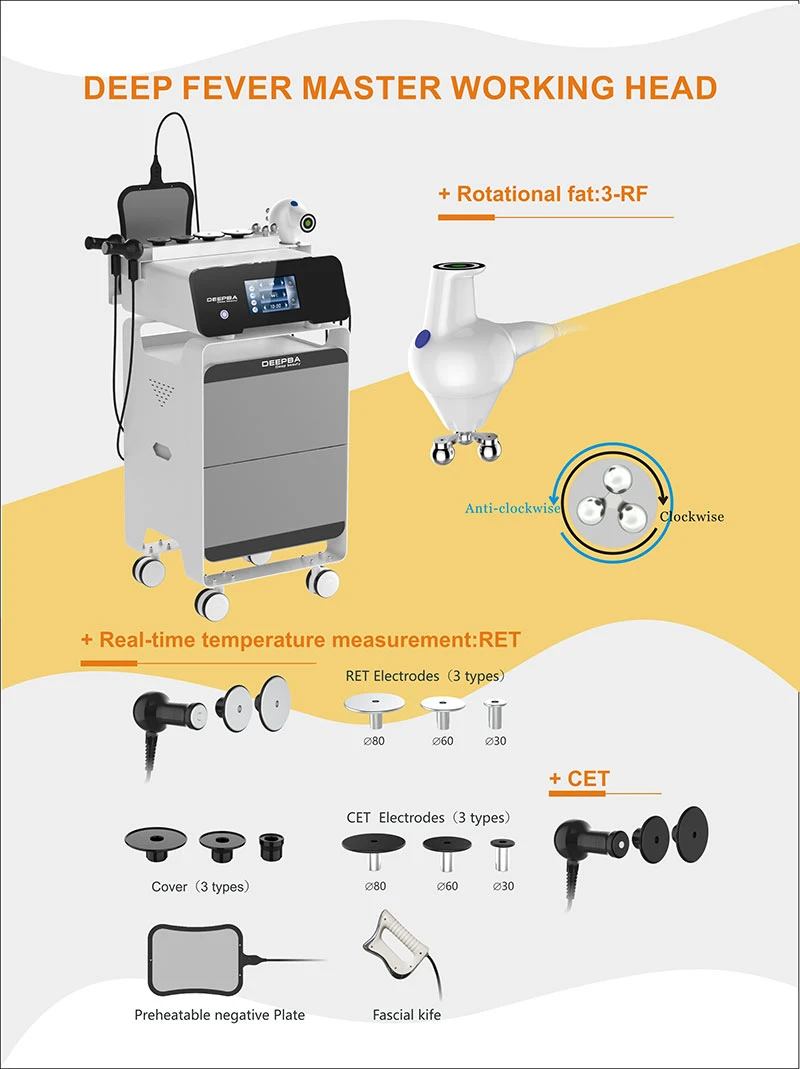

CET Applicator Heads	3 Insulated Heads (D30 mm, D60 mm, D80 mm) + Protective Housings
RET Applicator Heads	3 Conductive Stainless Steel Heads (D30 mm, D60 mm, D80 mm)
Fascia Blade Applicator	Heavy-duty medical stainless steel RF contour blade
3R Motorized Applicator	5-speed bidirectional rotation (Gears 1–5), dual heads (Trumpet & Size)
Return Electrode Plate	Preheated conductive negative plate (15-min intelligent preheat)
Treatment Timer	Adjustable 1 to 99 Minutes (Default: 30 Minutes)
Input Voltage	AC 220V–230V 50/60Hz (AC 110V optional for international export)
Executive Standards	GB4706.1-2005 / International Electrical Safety Compliance
Chassis Construction	Compact desktop console with integrated acrylic accessory organizer

---



Factory Manufacturing & OEM/ODM Support

Engineered and manufactured by Shandong Moonlight Electronics Tech Co., Ltd.-a certified medical aesthetic and physical therapy equipment manufacturer with over 16 years of medical device engineering expertise.

Zero Card Lock & Zero Consumable Exploitation: Operates seamlessly with standard RF conductive cream or massage gel. No mandatory RFID card swipes, recurring session counter fees, or proprietary software lockouts.

Turnkey OEM/ODM Customization: Custom-molded chassis badging, boot-screen clinic logo embedding, personalized housing colors, and multi-language system localizations available with low MOQ.

Comprehensive Warranty & Service:

2-Year Comprehensive Warranty covering the main processing console, power supplies, and internal RF generators.

24/7 Priority Engineering Assistance: Video troubleshooting diagnostics, rapid replacement part shipments within 24 hours, and complete technician training video modules.

Frequently Asked Questions & Inquiries

Frequently Asked Questions (FAQ)

Q1: What is the primary clinical difference between CET and RET modes?

A: CET (Capacitive) concentrates RF energy in high-fluid, superficial tissue structures (skin, vascular beds, and superficial muscles), making it ideal for skin firming, lymphatic drainage, and facial rejuvenation. RET (Resistive) bypasses superficial skin layers and generates intense endothermy inside high-density tissues with greater electrical resistance, such as visceral fat, joints, tendons, and deep myofascia.

Q2: Why is the preheated negative plate essential for client satisfaction?

A: Conventional tecar therapy systems require the patient to place their bare back or thigh onto a cold metal electrode, causing muscle flinching and discomfort. The BAT-3S+ features an automated 15-minute preheating function that raises the plate to a soothing physiological temperature prior to contact, enhancing patient relaxation and contact conductivity.

Q3: Does the BAT-3S+ require costly proprietary conductive creams or card locks?

A: No. The machine works reliably with standard high-viscosity conductive cream or massage gel. There are no mandatory RFID chip cards or usage limiters, ensuring nearly zero consumable overhead and maximum clinic profitability.

Q4: How does the real-time temperature feedback prevent accidental burns?

A: Applicator heads integrate high-sensitivity thermal sensors that continuously sample the contact temperature. If tissue heat exceeds the practitioner's preset temperature (adjustable from 35°C to 42°C), the digital display immediately turns red, prompting the operator to adjust scanning velocity or power level.
