Pneumatic Shockwave Therapy Machine For Professional Clinics

Advanced Pneumatic Shockwave Technology for Versatile Professional Applications

Bring a more versatile treatment platform to your clinic with our Pneumatic Shockwave Therapy Machine, designed around electronically controlled compressed-air ballistic technology. Instead of relying on electrical stimulation, the system accelerates a projectile through compressed air and transfers its kinetic energy through the applicator into the treatment area. This creates a controlled shockwave effect while allowing practitioners to adjust treatment parameters according to the selected body area and client tolerance.

For clinics, physiotherapy practices, rehabilitation centers and professional wellness facilities looking to expand their service portfolio, this system combines multiple treatment modes, interchangeable applicators and an intuitive touchscreen interface in one compact platform.

Three Waveform Options, One Flexible Platform

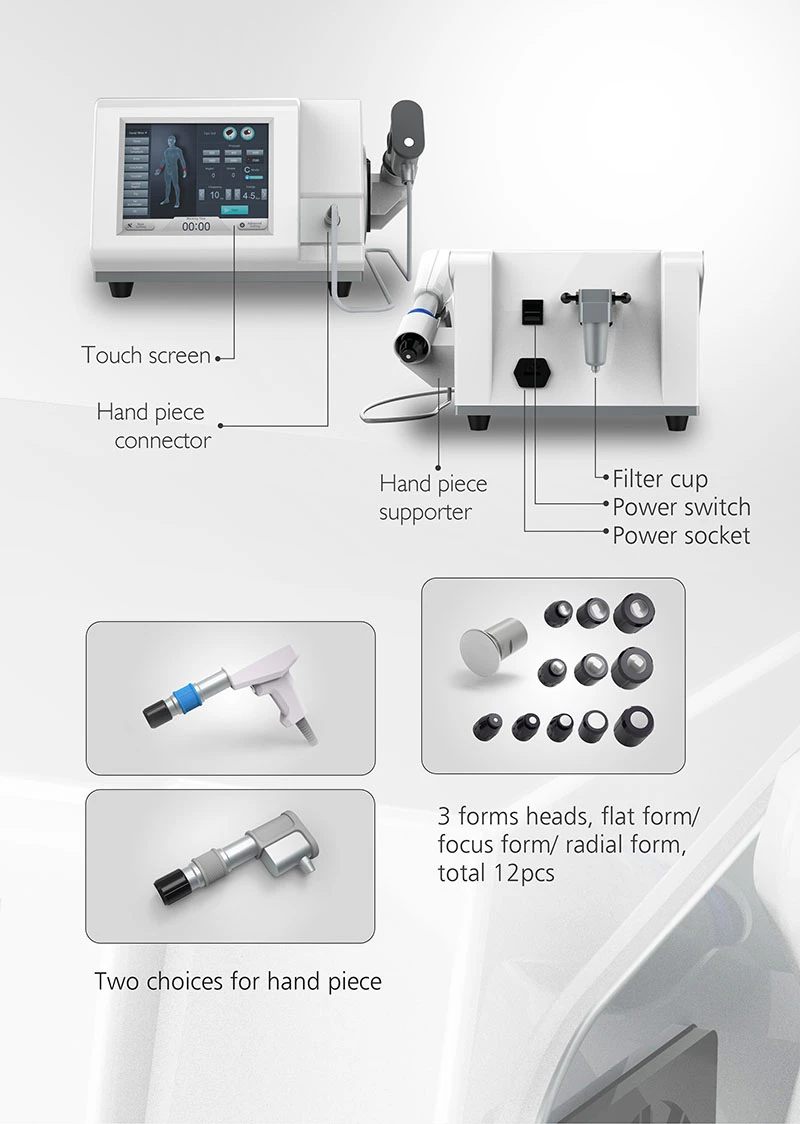

One of the key advantages of this system is its Flat, Radial and Focus waveforms, allowing practitioners to select the appropriate applicator according to the intended treatment area.

Flat Form provides direct impact to the selected body area and is available with 25mm, 20mm, 15mm, 10mm and 6mm heads.

Radial Form distributes shockwave energy more evenly across a larger treatment area, with 25mm, 20mm and 15mm options.

Focus Form concentrates the wave energy toward the treatment area and is also available with 25mm, 20mm and 15mm heads. The different head designs make it easier for professionals to adapt the treatment approach to different body regions and applications.

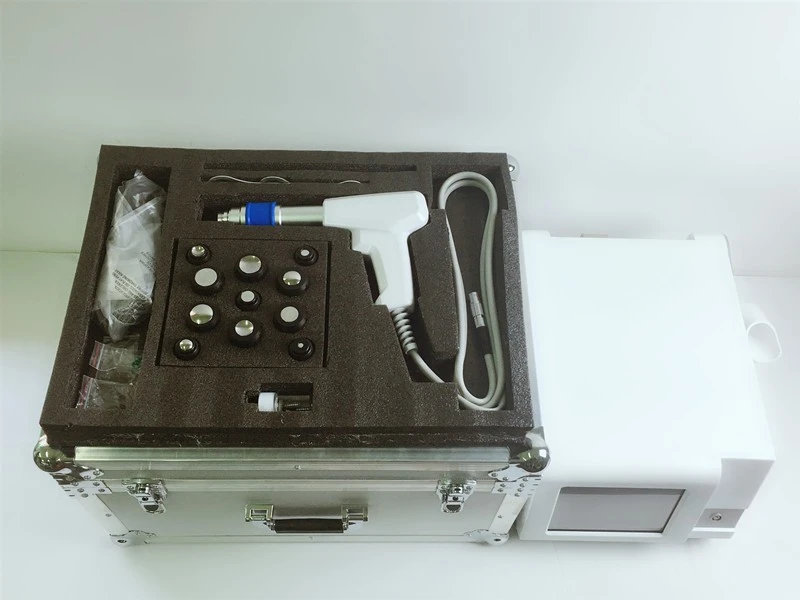

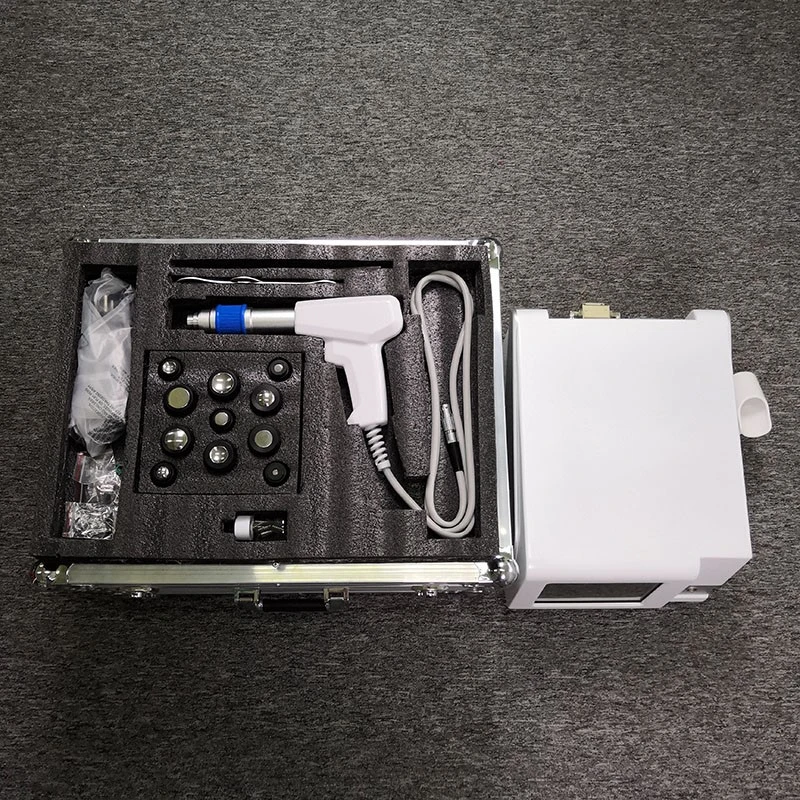

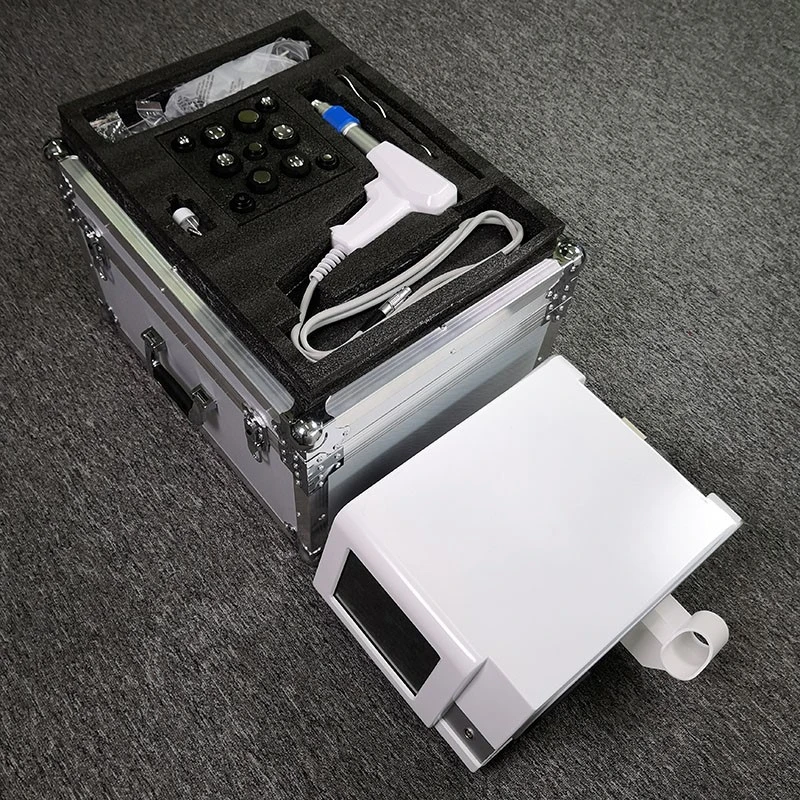

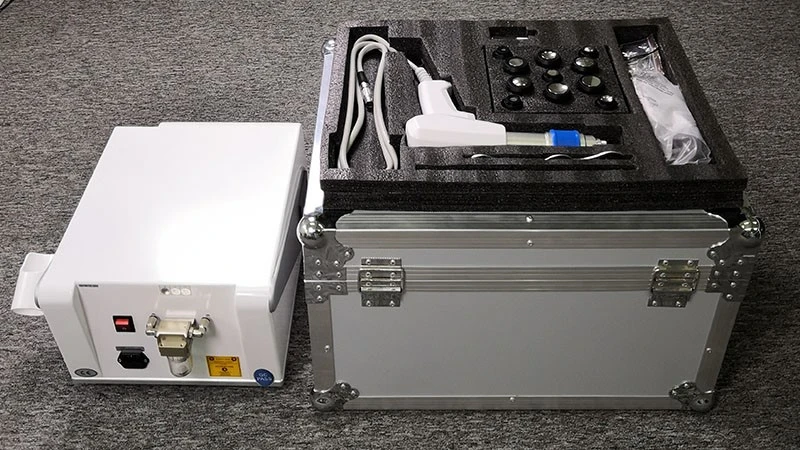

With 11 working heads included, your clinic has greater flexibility without needing to purchase multiple systems for different applications.

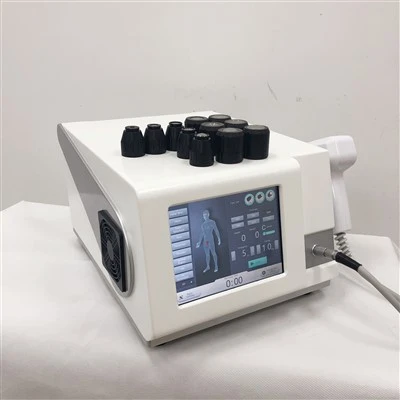

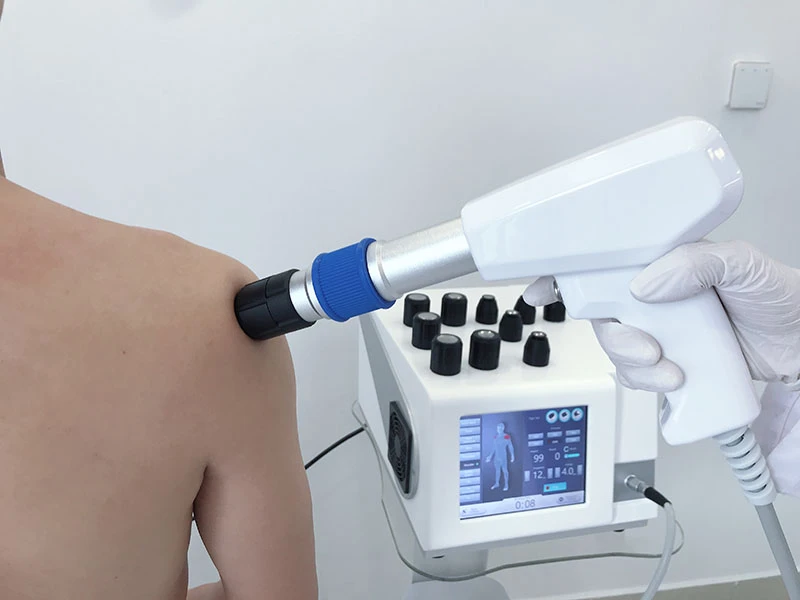

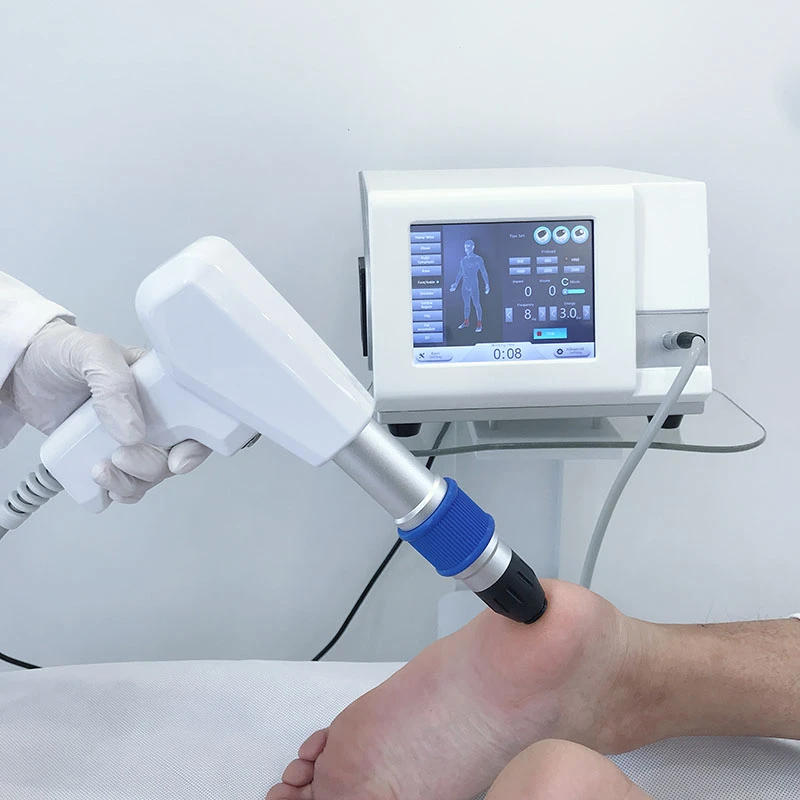

Smart Touchscreen Operation with Preset Treatment Modes

Designed with usability in mind, the system features a touchscreen control interface with programmed body-area options. The platform includes preset programs covering hand/wrist, elbow, pubic symphysis, knee, foot/ankle, shoulder, lumbar region, hip, fat accumulation and ED.

Each body area includes two automatic modes:

C Mode – Comfortable Mode: a softer setting designed for clients with lower tolerance.

P Mode – Professional Mode: a higher-intensity setting based on the programmed treatment recommendations.

Preset intensity, frequency and impact parameters can be adjusted through the touchscreen, giving practitioners greater control rather than forcing them to work with one fixed protocol. The system also provides six preload selections and automatically recommends preload according to the selected body area.

Adjustable Energy and Frequency

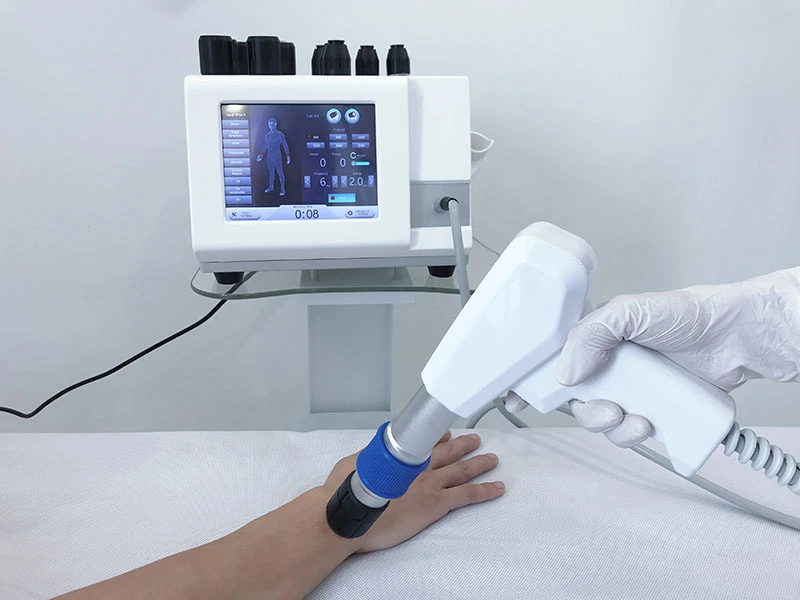

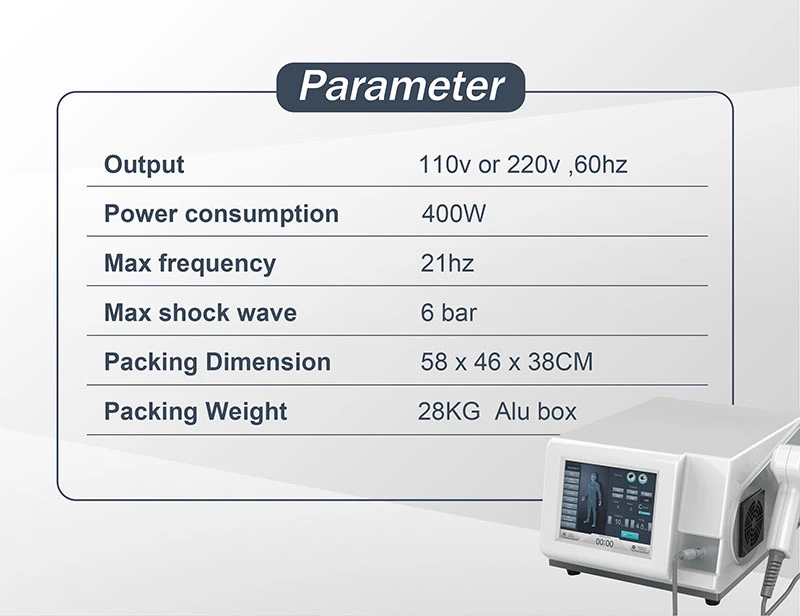

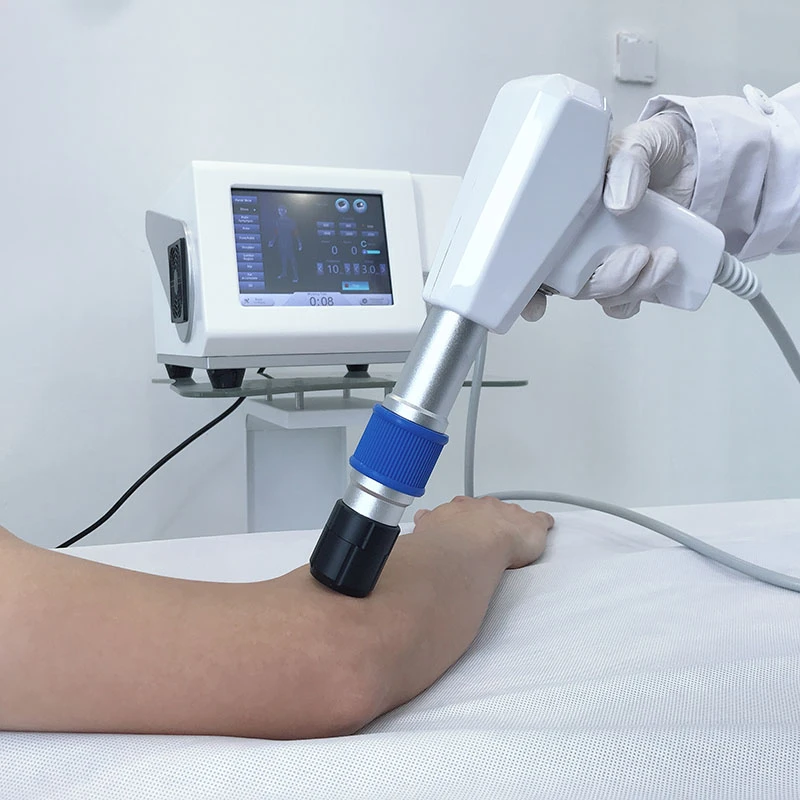

The treatment parameters can be adapted according to the application and client feedback. The system supports a frequency range of 1–21 Hz and an energy range of 0.5–6 bar, providing a broad operating window for professional use. During treatment, the applicator can be moved slightly across the target area to help cover the intended treatment zone.

This combination of preset programs and manual adjustment makes the machine suitable for clinics that want both easy operation for routine treatments and greater parameter flexibility for experienced practitioners.



Designed for a Wide Range of Professional Applications

Shockwave therapy is commonly used within professional treatment programs involving areas such as the elbow, knee, shoulder, Achilles tendon, heel, plantar fascia and muscular trigger points. The user guide also lists applications including tennis or golfer's elbow, shin pain, chronic neck/shoulder/back pain, rotator cuff-related shoulder discomfort and knee osteoarthritis.

For businesses, this broad application range creates opportunities to develop different treatment packages instead of positioning the machine around only one service.

Built for Daily Professional Use

The handpiece is designed with replaceable consumable components. The manual specifies that the internal bullet should be replaced after approximately 2 million impacts, while the tube and other components can be maintained or replaced as required. Regular cleaning of the heads, tube and handpiece helps maintain smooth operation and reduce issues caused by residual gel or moisture.

The system operates on AC 110V or AC 220–230V, 50/60Hz, with an output power specification of 282VA, making voltage configuration an important point to confirm when ordering for different international markets.

Why Clinics Choose This Shockwave System

One machine, multiple applications.
Flat, radial and focused waveforms plus 11 interchangeable heads give professionals more treatment flexibility.

Easy to operate.
A touchscreen interface, body-area programs and preset C/P modes help simplify daily operation.

Adjustable treatment parameters.
Frequency, energy, impact count and preload can be adjusted according to the selected application and client tolerance.

Designed for professional business use.
Its broad application range allows clinics, rehabilitation facilities and wellness businesses to create multiple service offerings around a single platform.

Service-friendly handpiece design.
Replaceable bullets and tubes make routine maintenance more manageable for long-term operation.

A Flexible Shockwave Solution for Your Business

Whether you are expanding an existing physiotherapy service, adding new wellness treatments or looking for a versatile shockwave platform for your clinic, this pneumatic system offers a practical combination of multi-waveform technology, interchangeable treatment heads, touchscreen control and adjustable parameters.

For distributors and clinic owners, we also support OEM/ODM cooperation and business-oriented customization. Contact us for machine configuration, voltage options, treatment-head selection, private-label requirements and wholesale quotation.

Request a Professional Quotation Today
Tell us your target market, required configuration and order quantity, and our team can recommend the most suitable setup for your business.
