Vertical Crystallite Depth 8 Fractional RF Microneedling System: 8mm Subcutaneous Adipose Remodeling With Zero Card Lock
Extreme 8mm Remodeling Depth: Combines motorized gold-plated microneedles (0.5mm–7.0mm mechanical depth) with fractional 4MHz radiofrequency thermal diffusion up to 8mm into subcutaneous adipose and fibrous tissue. Triple-Depth Burst Mode: Proprietary multi-level sequential firing technology delivers RF energy across 3 distinct tissue depths (e.g., 7mm → 5mm → 3mm) in a single millisecond stroke, shortening procedure times by 60%. Zero Swipe Card Lock (100% Unrestricted): Factory-unlocked operating system eliminates mandatory proprietary RFID/IC card chips, zeroing recurring licensing costs and unlocking maximum clinic treatment profit margins.
Product Introduction
Vertical Crystallite Depth 8 Fractional RF Microneedling System: 8mm Subcutaneous Adipose Remodeling with Zero Card Lock
As aesthetic dermatology demands deeper non-surgical structural lifting, traditional superficial radiofrequency and standard 3mm microneedling devices no longer satisfy high-end patient expectations. Featured as an elite medical platform in our professional medical skin care device series, the MNLT Crystallite Depth 8 delivers dual-handpiece motorized precision for whole-body fractional dermal and subdermal coagulation.
Equipped with medical-grade insulated gold-plated needles and dual face/body applicators, this system empowers clinics to treat severe acne scarring, facial skin laxity, submental fat, and stretch marks with minimal downtime. Most importantly, Shandong Moonlight delivers this platform completely free of RFID card-swiping restrictions-giving your practice complete operational freedom and rapid capital payback within 20 to 30 clinical treatments.
Core Engineering & Technical Breakthroughs
No Swipe Card System (Unrestricted Clinic Freedom): Unlike competing commercial devices that enforce proprietary IC card readers and charge 50–50–100 per card activation, the MNLT Crystallite Depth 8 is 100% unencrypted. Clinics purchase only cost-effective sterile replacement tips with zero software countdown limits.
8mm Subcutaneous Thermal Penetration: Needle penetration depth is electronically calibrated from 0.5mm to 7.0mm, with RF thermal dissipation extending up to 8mm into the deep dermis and adipose layer, melting fat and contracting fibrous septa simultaneously.

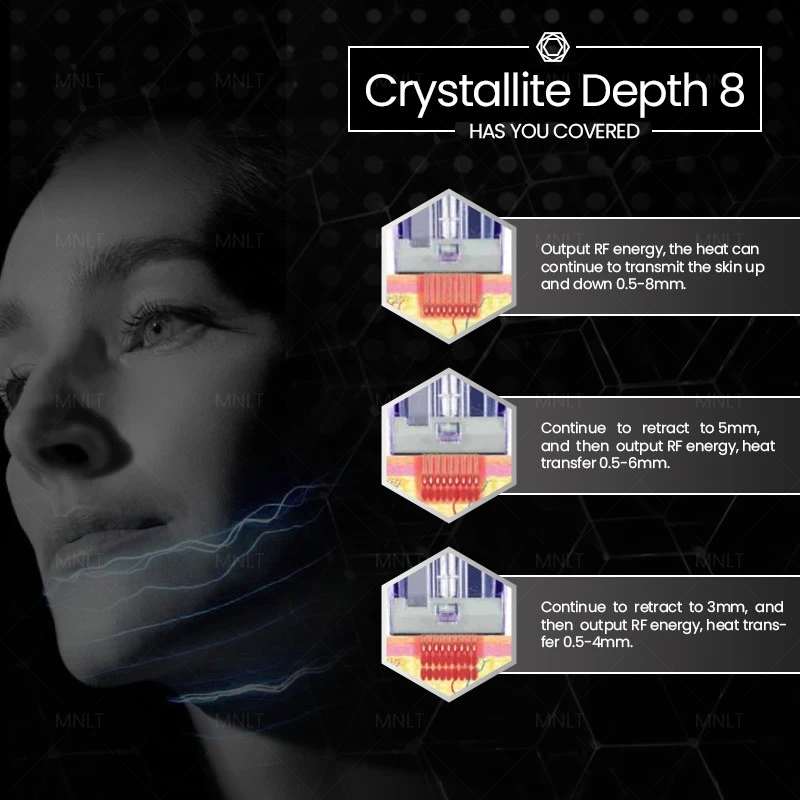

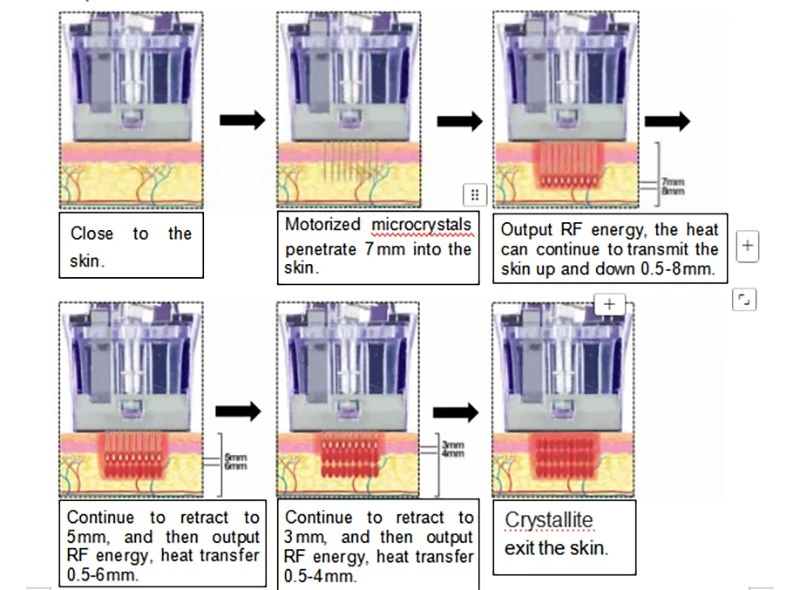

Revolutionary Burst Mode (Segmented Heating): Deploys RF energy sequentially at multiple tissue levels within one single automated penetration cycle, treating deep adipose, superficial fascia, and the reticular dermis simultaneously with superior uniformity and minimal epidermal disruption.
0.22mm Ultra-Fine Insulated Gold-Coated Needles: Needles feature a 0.22mm tapered cone body with medical gold plating and high-grade insulation along the shaft. Only the 0.1mm exposed tip emits RF energy, preventing epidermal thermal burning and post-inflammatory hyperpigmentation (PIH).

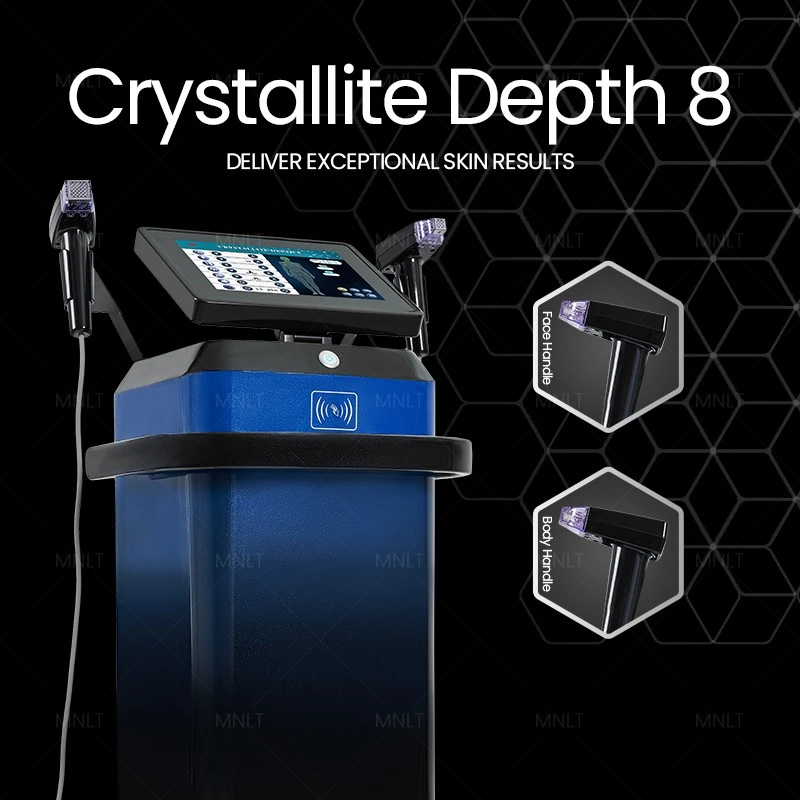

Dual Ergonomic Handpiece Configuration: Factory-equipped with a lightweight Face/Neck Handle and a high-load Body Handle, accompanied by a heavy-duty pneumatic foot switch for high-volume daily operation.

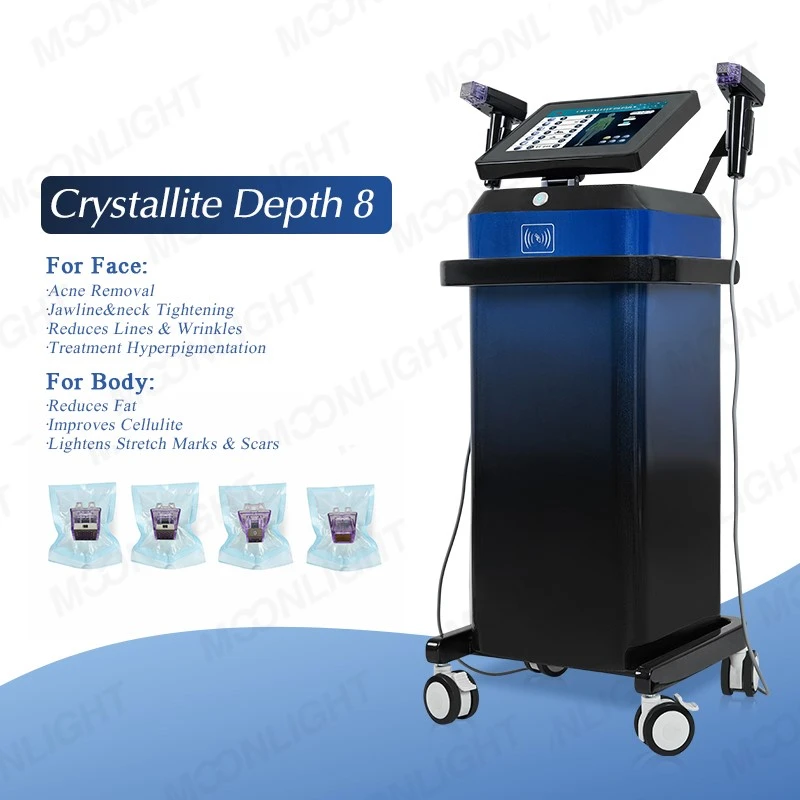

4 Interchangeable Clinical Tip Geometries:
12P Tip: Fine periorbital, perioral, and sensitive facial contour areas.
24P Tip: Standard full-face tightening, jawline definition, and neck rejuvenation.
40P Tip: Large-area body tightening, abdominal skin laxity, buttocks, thighs, and stretch marks.
Nano-Crystalline Tip: Non-invasive transdermal drug delivery and serum mesotherapy infusion.
Clinical Indications & Treatment Protocols
Facial Contouring & Deep Rhytids: Tightens nasolabial folds, reduces submental double-chin fat, smooths forehead furrows, and firms peri-orbital crow's feet.
Atrophic Acne Scars & Pores: Breaks down dense fibrotic scar tissue (ice pick, boxcar, and rolling scars) while stimulating extensive neocollagenesis to resurface skin texture.
Active Inflammatory Acne: Selectively ablates overactive sebaceous glands to suppress sebum overproduction and sterilize acne-causing bacteria.
Body Skin Laxity & Striae Gravidarum: Remodels deep fibrous cords to smooth postpartum abdominal stretch marks, post-weight-loss laxity, and arm flaccidity.
Axillary Bromhidrosis: Thermally coagulates apocrine sweat glands in the deep axillary dermis, providing long-lasting non-surgical relief from underarm hyperhidrosis.
Clinical Treatment Pairing: For medical spas providing comprehensive clinical skin transformations, pair this deep fractional device with our 10-in-1 professional facial care machine for pre-treatment hydro-dermabrasion deep cleansing and post-treatment soothing ultrasound hydration.
Smart 10.4-Inch Interface & Precision Workflow
10.4-Inch Intuitive Color Touchscreen: Visual 3D anatomical zone selection guides operators seamlessly between Face/Neck and Body operating modes.
Multi-Depth Electronic Modulation: 0.5mm–2.5mm facial depth adjustable in 0.1mm micro-increments; 1.0mm–7.0mm body depth adjustable in 0.5mm increments.
M1–M5 Parameter Memory Slots: Store and recall up to 5 customized doctor treatment programs for instant setup during busy clinical shifts.
Dual Triggering Mechanisms: Flexible single-shot mode for targeted facial spots and double-shot continuous firing mode for rapid large-area body coverage.
Technical Specifications Table
| Specification Parameter | Factory Engineering Standard |
|---|---|
| Model Designation | MNLT Crystallite Depth 8 (Vertical Platform) |
| RF Output Frequency | 4 MHz Medical-Grade Monopolar/Bipolar RF |
| Maximum RF Power | 10W – 300W (10–200W Face / 10–300W Body, 10W Steps) |
| Needle Penetration Depth | 0.5 mm – 7.0 mm (Thermal Energy Reaches 8 mm) |
| Applicator Handpieces | Dual Handpieces (Face/Neck Handle + Body Handle) |
| Interchangeable Probes | 12-Pin / 24-Pin / 40-Pin / Nano-Crystalline Head |
| Needle Metallurgy & Coating | Medical Gold-Plated Medical Stainless Steel + Insulated Shaft |
| Operating Modes | Fixed Depth Mode + Segmented Burst Mode (Explosive Mode) |
| Trigger Mechanism | Single-Shot & Double-Shot via Heavy-Duty Foot Switch |
| Control Console | 10.4-Inch Color Tiltable Touchscreen |
| Card Reader Requirement | None (100% Factory Unlocked, No Swipe Card Needed) |
| Operating Voltage | AC 110V / 230V ±10%, 50Hz / 60Hz |
| Chassis Dimensions & Portability | 105 × 40 × 36 cm (Vertical Trolley with 360° Silent Casters) |
| Flight Case Dimensions & Weight | Aviation Aluminum Case: 49 × 46 × 102 cm / Gross Weight: 28.4 kg |
| Certifications & Compliance | Medical CE (TUV/ITS), ISO13485, RoHS |
Factory Strength & Turnkey OEM/ODM Support

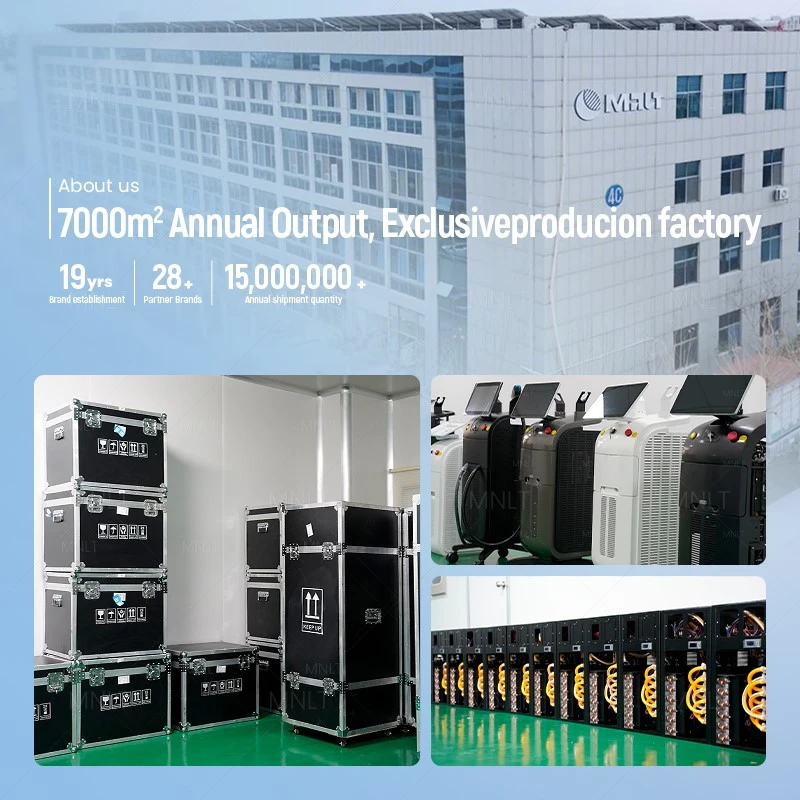

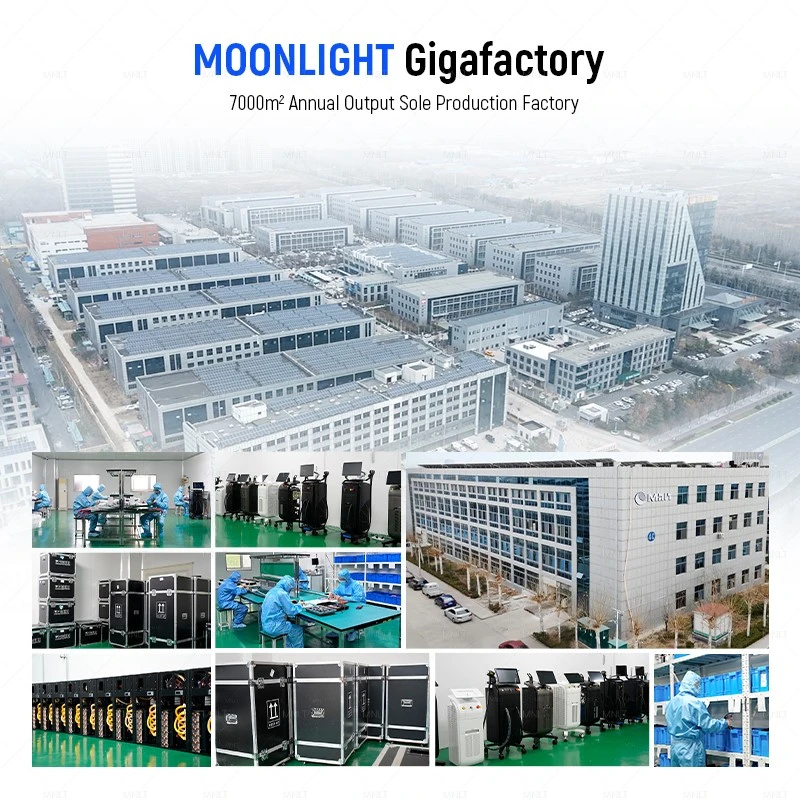

Every Crystallite Depth 8 console is manufactured inside Shandong Moonlight's Class 100,000 cleanroom at our certified medical aesthetic equipment manufacturing facility, adhering strictly to ISO13485 medical device quality protocols.
Turnkey Private Labeling (OEM/ODM): Free startup software screen logo branding, custom exterior chassis color lacquer (Medical Blue/Black, Pure Pearl White, Matte Graphite), and precision laser-engraved metal chassis branding plates (MOQ: 1 unit).
Comprehensive B2B Warranty Protection: 2-year full system warranty, 24/7 video technical diagnostics with biomedical engineers, lifelong affordable sterile cartridge supply, and DHL/FedEx air shipment for replacement components within 24 hours.
Export Logistics Safety: Shipped in reinforced aviation flight cases with DDP (Delivered Duty Paid) door-to-door delivery options covering customs clearance and local duties.
High-Frequency B2B FAQ & Wholesale Consultation
Q1: How does the "No Swipe Card" system benefit clinic operations and margins?
A: Traditional brand-name microneedling platforms force clinics to purchase proprietary smart cards that lock the machine after a fixed number of pulses, imposing ongoing artificial licensing costs. Shandong Moonlight delivers the Crystallite Depth 8 completely unlocked with no swipe cards, no RFID chips, and no shot counters. Clinics purchase only sterile replacement tips, keeping cost-per-treatment below 15whilechargingclients15whilechargingclients600–$1,200 per session.
Q2: What is the clinical advantage of the 8mm depth and Burst Mode over 3mm/4mm microneedling?
A: Standard 3mm–4mm devices only reach the reticular dermis. Our 8mm penetration depth targets the Subcutaneous Adipose Tissue (SAT) and Fibrous Septal Network (FSN), allowing simultaneous fat melting and deep structural fascial contraction. Burst Mode delivers energy at 3 distinct depth planes in one insertion, tripling collagen remodeling while slashing patient procedural discomfort and treatment times by 60%.
Q3: Is the treatment safe for Fitzpatrick skin types IV–VI?
A: Yes. Because our needles are insulated along the entire shaft and only emit RF energy from the 0.1mm gold tip in the targeted deep dermis, the melanin-rich epidermis is thermally bypassed. This virtually eliminates epidermal hyperpigmentation risks, making it safe for all Fitzpatrick skin types I–VI year-round.
Upgrade Your Medical Aesthetics Practice with 8mm Depth Precision
Ready to add non-surgical deep facial remodeling and acne scar resurfacing without recurring swipe card fees?
Request 2026 Factory Direct Pricing: Receive our wholesale price sheet and replacement cartridge price list within 2 hours.
Book a Live Virtual Machine Inspection: Schedule a 1-on-1 WhatsApp video demonstration with our clinical engineers.
👉 Please inquire directly through our official B2B consultation center or contact our medical engineering team on WhatsApp: +86-18369669211.
