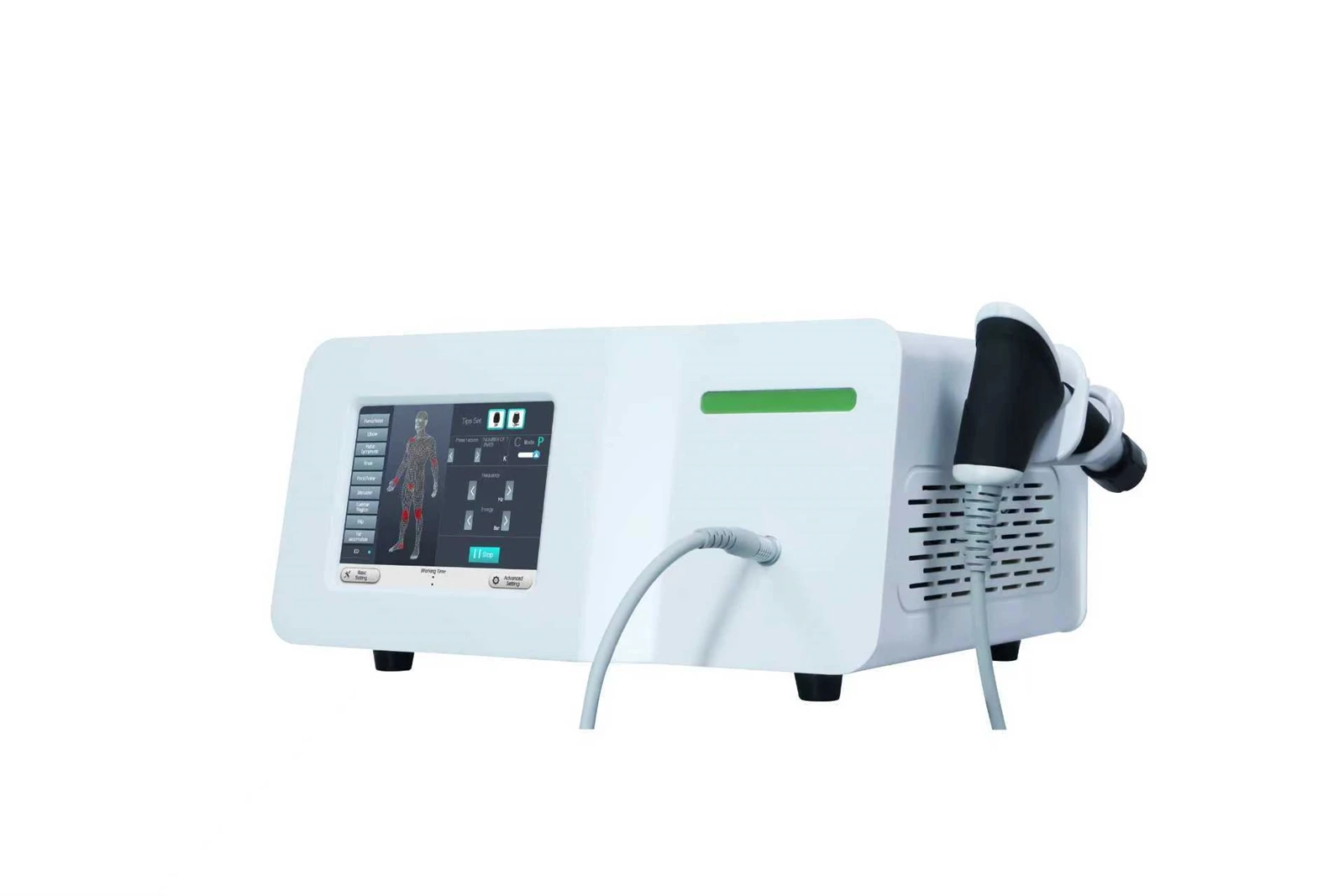

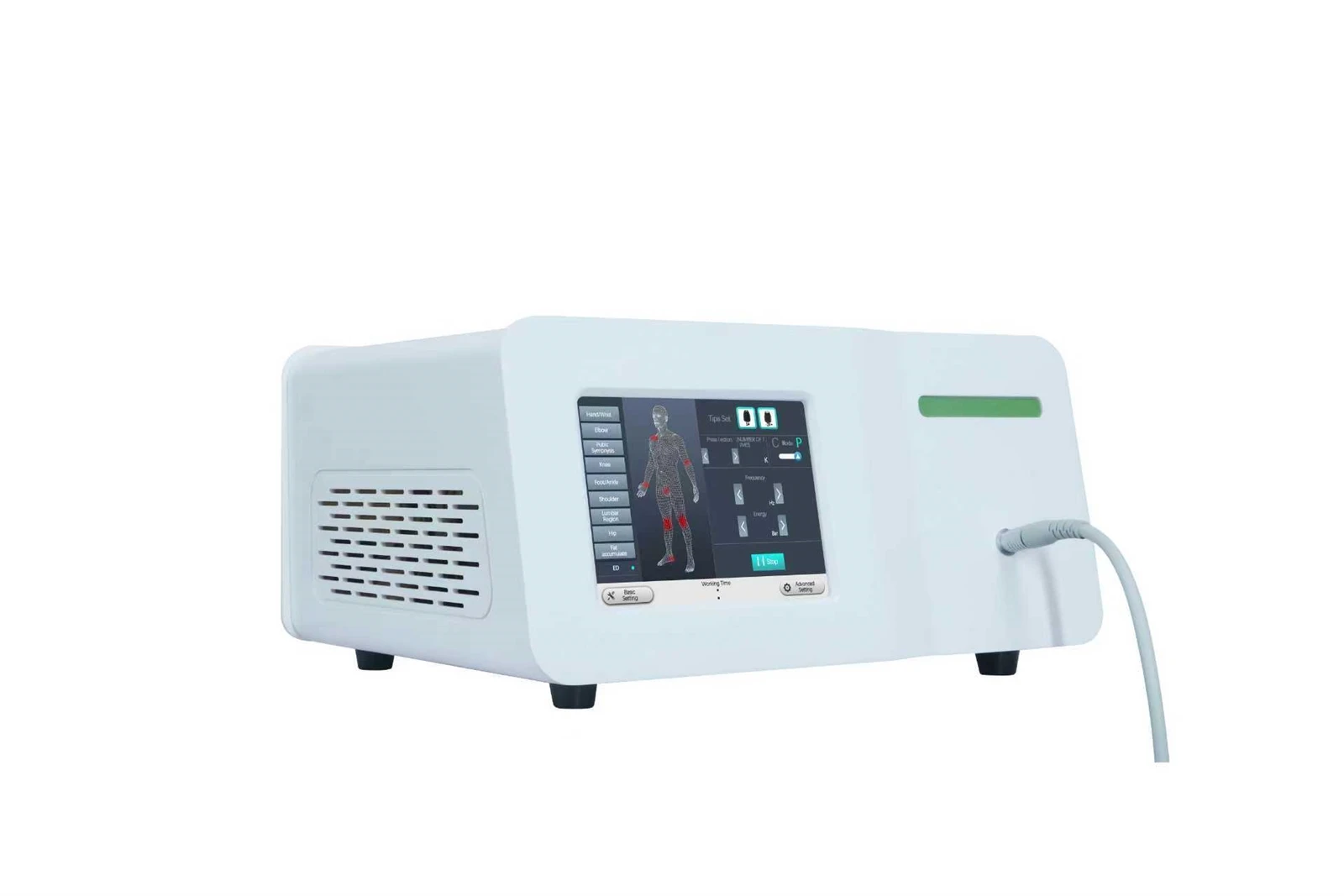

Pneumatic Air-Cooled Shockwave Therapy Machine
High-Energy Ballistic Pneumatic Mechanism: Utilizes an electronically controlled air compressor driving a high-speed projectile bullet to deliver deep acoustic shockwaves with adjustable pressure from 0.5 Bar to 6.0 Bar and a frequency range of 1 Hz to 21 Hz. Self-Contained Silent Air-Cooling Architecture: Integrated high-efficiency air dissipation system eliminates bulky external water chillers and cumbersome oil pumps, ensuring continuous high-turnover operation in a compact, portable desktop chassis. Extended 2 Million-Shot Projectile Durability: High-tensile alloy bullet assembly delivers 2,000,000 impacts per cycle, featuring a fast-release maintenance design for effortless handpiece servicing with zero clinic downtime. Dual Clinical Treatment Spectrum: Fully equipped with 5 standard radial/focus transmitters and 4 specialized heads (including exclusive D6#, D15#, and D25# probes) designed for musculoskeletal rehabilitation, localized fat breakdown, and erectile dysfunction (ED) vascular therapy.
Product Introduction
As an economical yet high-specification cornerstone within our medical physical therapy and rehabilitation machine series, the MNLT Pneumatic Air-Cooled Shockwave Therapy Machine provides physical therapy clinics, sports medicine centers, orthopedics, and men's wellness practices with hospital-grade extracorporeal shock wave therapy (ESWT) at a highly competitive capital cost, yielding an expedited investment payback period of 30 to 45 days.
Core Technology & Engineering Innovations
1. Electronically Controlled Ballistic Shockwave Engine
Acoustic Kinetic Impact: Accelerated compressed air propels an internal projectile bullet against the applicator probe, generating high-peak pressure radial acoustic waves that penetrate deep subcutaneous tissues (up to 60 mm depth).
Cellular & Vascular Neogenesis: Induces micro-trauma in fibrotic and ischemic tissues, accelerating calcium deposit dissolution, boosting blood microcirculation, releasing substance P, and stimulating vascular endothelial growth factor (VEGF) synthesis.
2. High-Efficiency Self-Contained Air-Cooling Architecture
Zero Liquid Leakage Risk: Unlike traditional liquid-cooled systems that risk internal coolant contamination or pump degradation, our heavy-duty internal heat dissipation fins and forced-air convection provide sustained thermal balance during peak clinic hours.

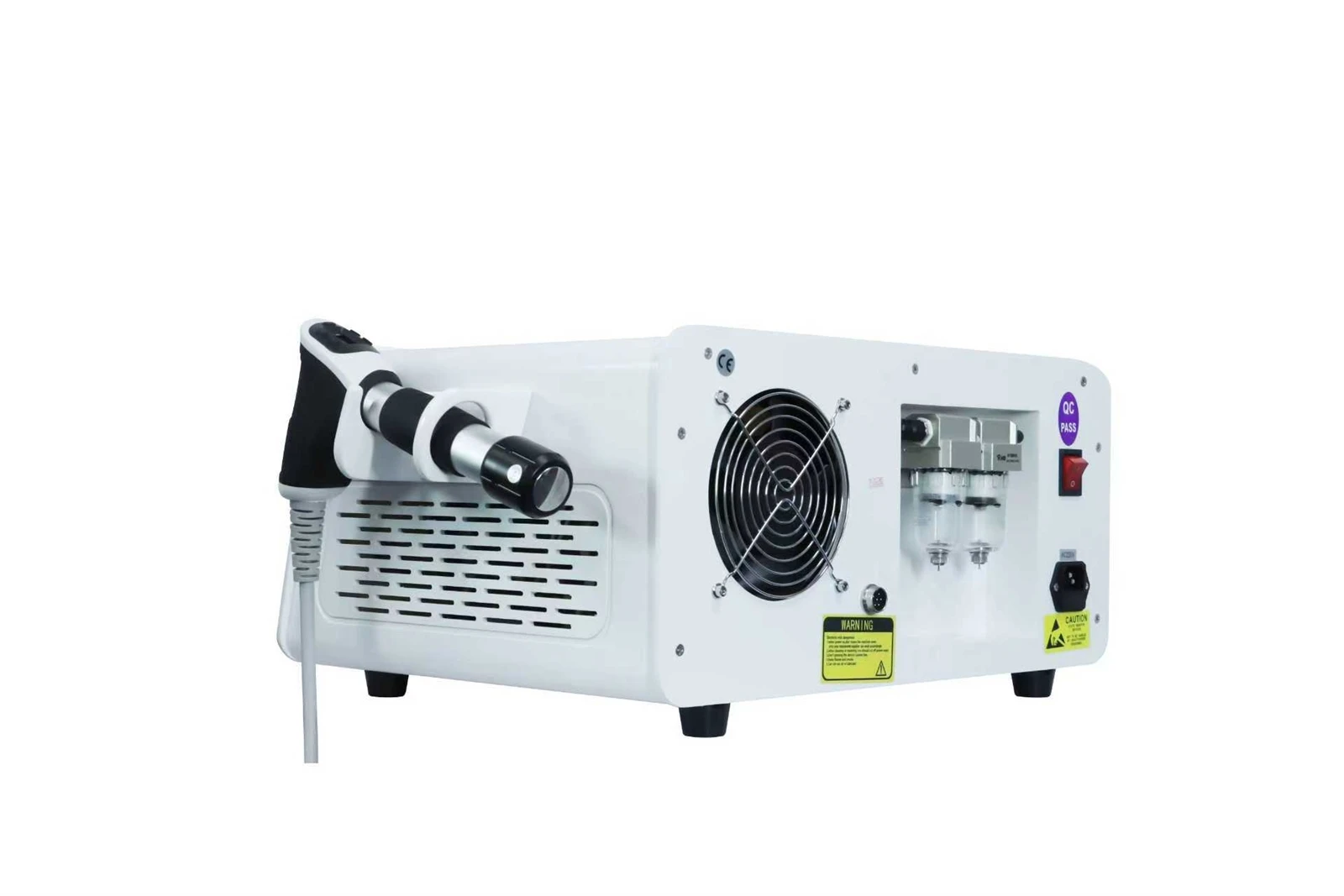

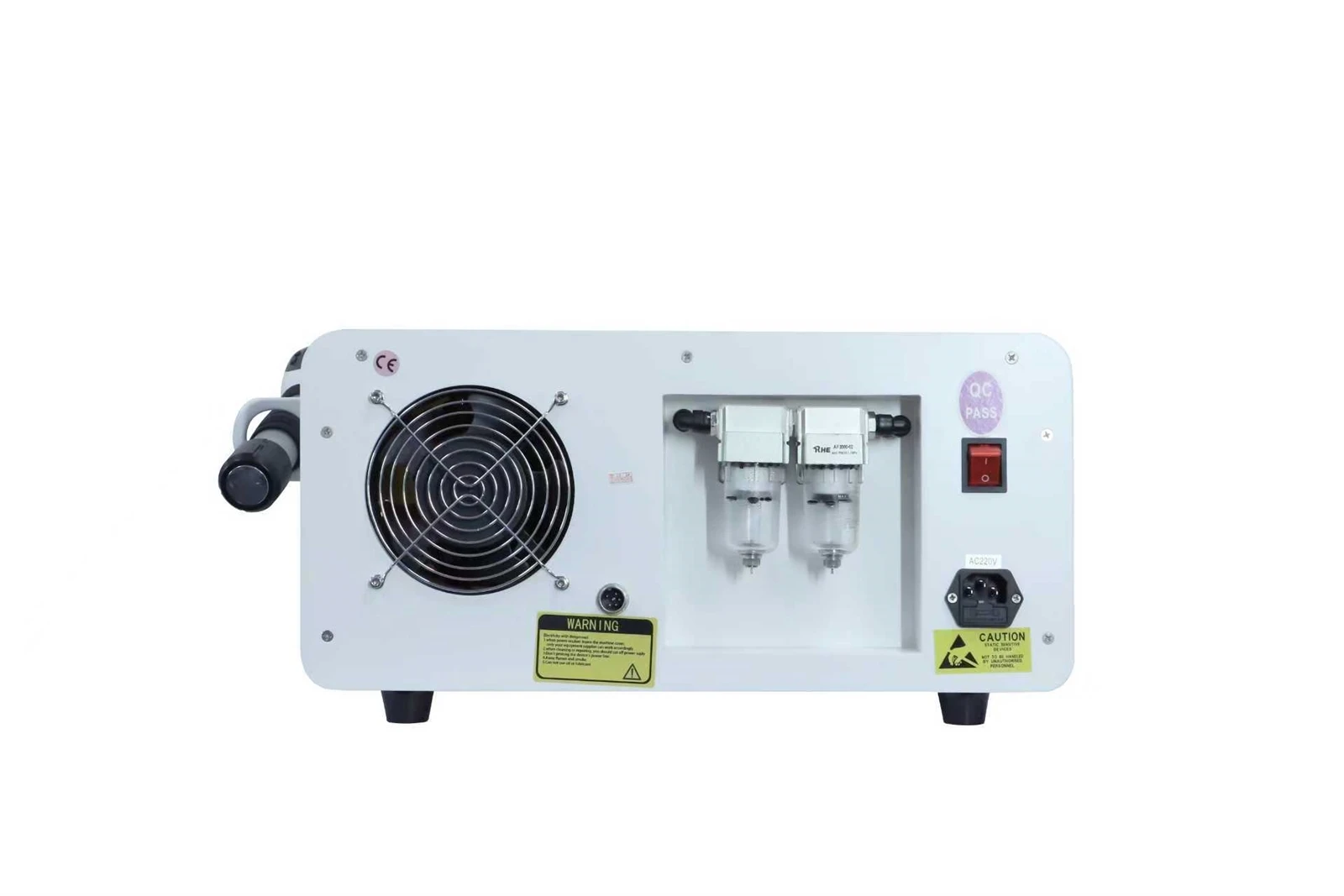

Dual Transparent Filter Purification: Equipped with a rear dual-stage oil/water separator system that filters ambient moisture and particulates, maintaining pure, dry pneumatic pressure and prolonging pneumatic valve service life.
3. Heavy-Duty 2,000,000-Impact Handpiece Assembly
Reinforced Ballistic Chamber: Precision-engineered internal bore withstands continuous high-frequency percussion without bore warping or pressure loss.
Quick-Change Modular Bullet System: Includes an ergonomic combination wrench enabling swift replacement of the internal projectile bullet within 3 minutes once the 2-million impact threshold is reached.

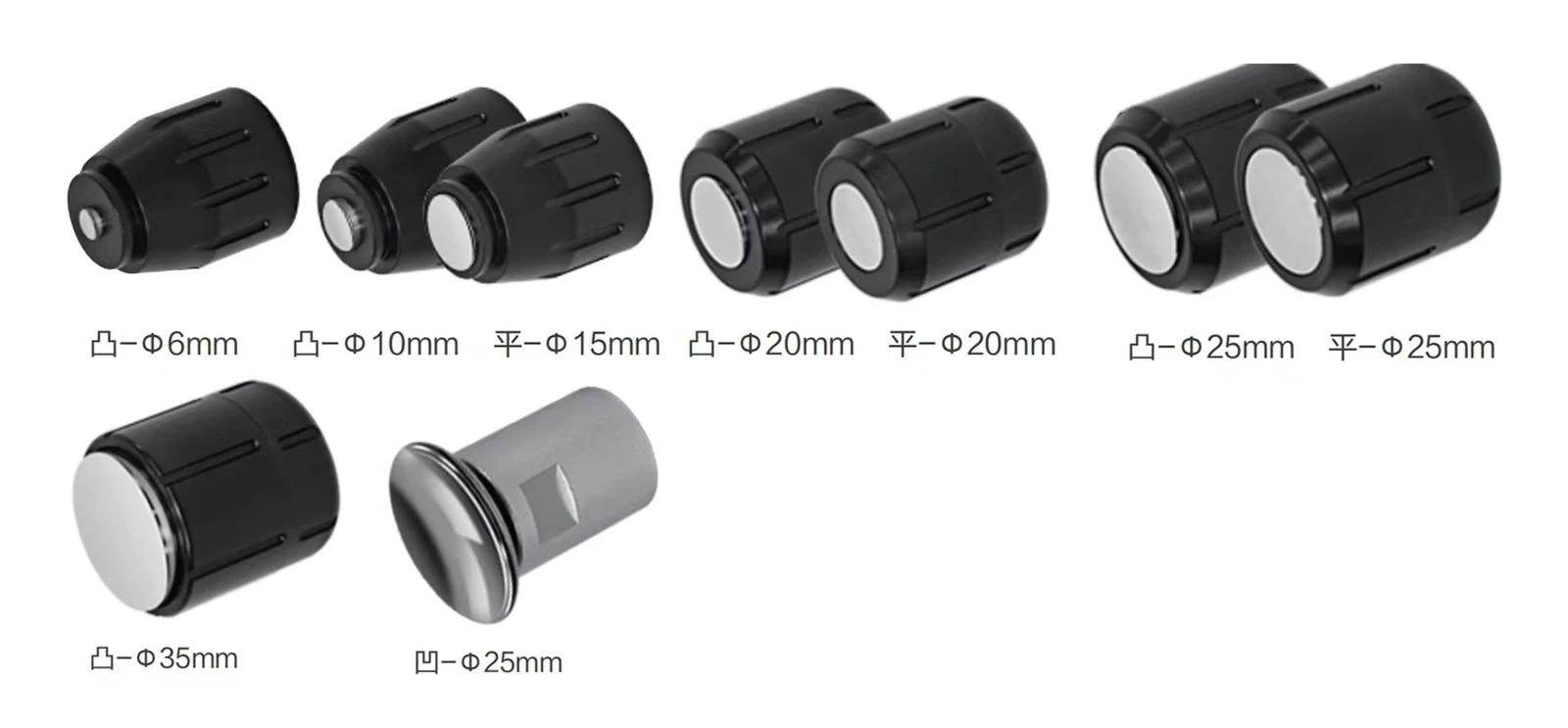

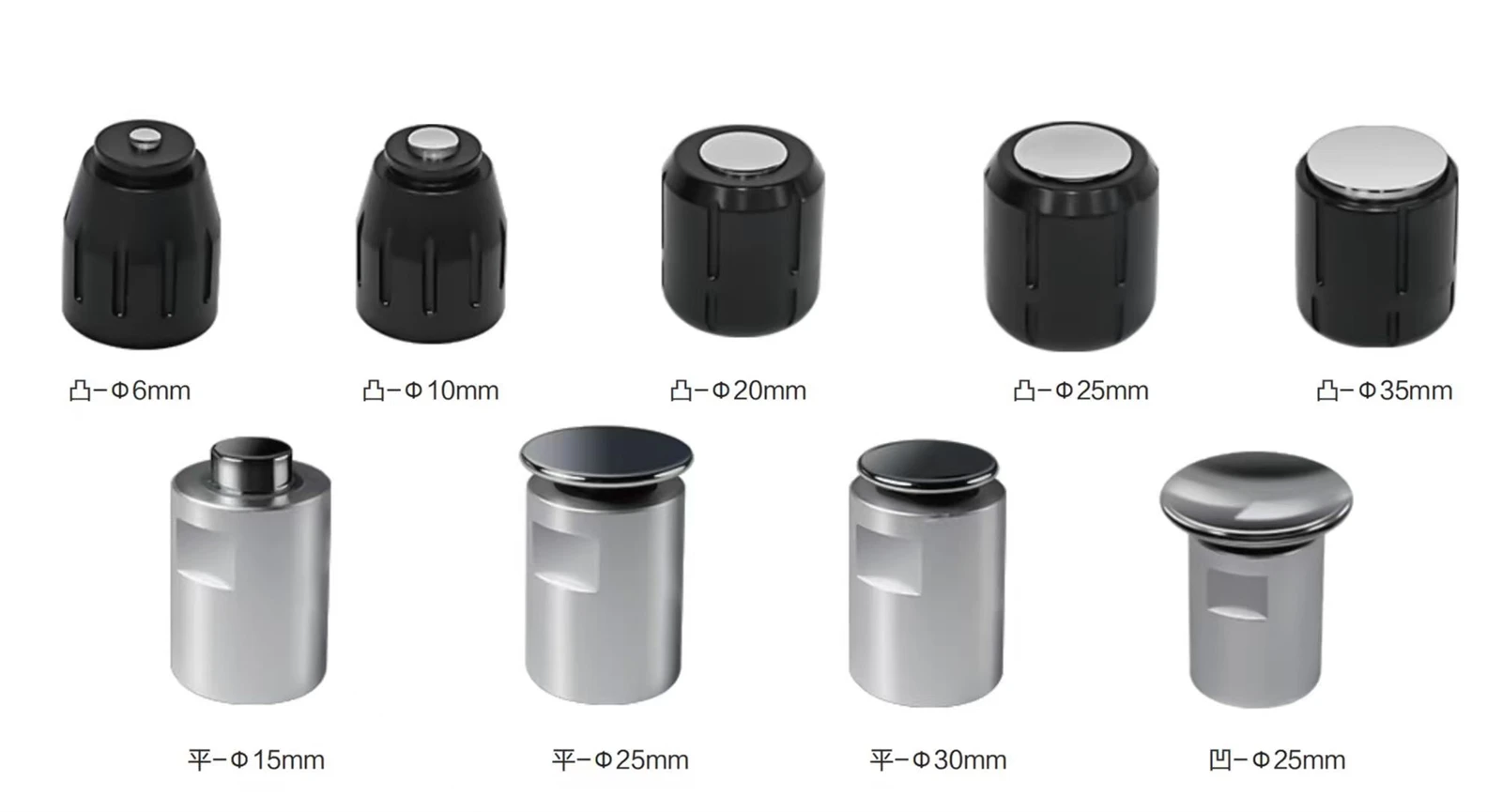

4. Comprehensive Multi-Transmitter Array
Standard Transmitters (1#–5#): Distinct concave, flat, and radial geometries engineered for targeted tendon insertions, large muscle bellies, and periosteal pain points.
Specialty Probes (D2, D3, D4, D6): High-density contact heads engineered for focused acupoint stimulation and trigger point deactivation.
Dedicated Men's Health Probes (D6#, D15#, D25#): Specialized curved and flat transmitters tailored for penile cavernous body revascularization and chronic pelvic/prostate relief.
Clinical Indications & Protocol Guidelines
Clinical Indications
Orthopedics & Sports Medicine: Plantar fasciitis, calcific shoulder tendonitis, lateral/medial epicondylitis (tennis/golfer's elbow), patellar tendinopathy (jumper's knee), Achilles tendinopathy, and myofascial trigger points.
Aesthetic Contouring & Tissue Remodeling: Connective tissue remodeling, skin elasticity tightening, and localized cellulite/fat accumulation smoothing.
Urology & Men's Health: Low-intensity shockwave therapy (Li-ESWT) for vasculogenic erectile dysfunction (ED) and chronic pelvic pain syndrome (CPPS).
Recommended Clinical Protocol Breakdown
| Treatment Indication | Recommended Transmitter | Frequency & Pressure | Total Impacts / Preload | Session Frequency | Target Clinical Outcome |
|---|---|---|---|---|---|
| Tennis / Golfer's Elbow | 2#, 3# Radial Heads | 3 Hz / 3.0 Bar | 2,000–2,500 Impacts | Every 5–7 Days | Calcification release, tendon repair |
| Plantar Fasciitis & Heel Spurs | 1#, 2# Focus Heads | 3 Hz / 2.0 Bar | 1,000 Impacts | Every 1–3 Days | Pain reduction, plantar fascia decompression |
| Rotator Cuff / Shoulder Pain | 5#, 6# Broad Heads | 6 Hz / 3.0 Bar | 2,000–2,500 Impacts | Every 1–2 Days | Bursitis relief, range-of-motion recovery |
| Lumbar Region & Chronic Back | 4#, 5# Deep Heads | 8 Hz / 4.0 Bar | 2,000–2,500 Impacts | Every 5–7 Days | Deep muscle relaxation, spasm alleviation |
| Cellulite & Fat Accumulation | 5#, 6# Flat Heads | 10 Hz / 4.0 Bar | 2,000–2,500 Impacts | Every 5–7 Days | Microcirculation boost, skin tightening |
| Vasculogenic ED Protocol | D6#, D15# ED Heads | 3–8 Hz / 0.5–2.0 Bar | 1,500 Impacts (5 Zones) | 2x/Week (3 Weeks) | Cavernous angiogenesis, vascular restoration |
Clinical Synergy Tip: For multidisciplinary clinics delivering comprehensive post-trauma recovery, combining radial shockwave therapy with our mild hyperbaric oxygen chamber system accelerates cellular tissue oxygenation and metabolic recovery. For comparative treatment protocols and clinical case studies, medical directors can also consult the MNLT Laser clinical rehabilitation blog.
Smart Operation & Clinic Workflow

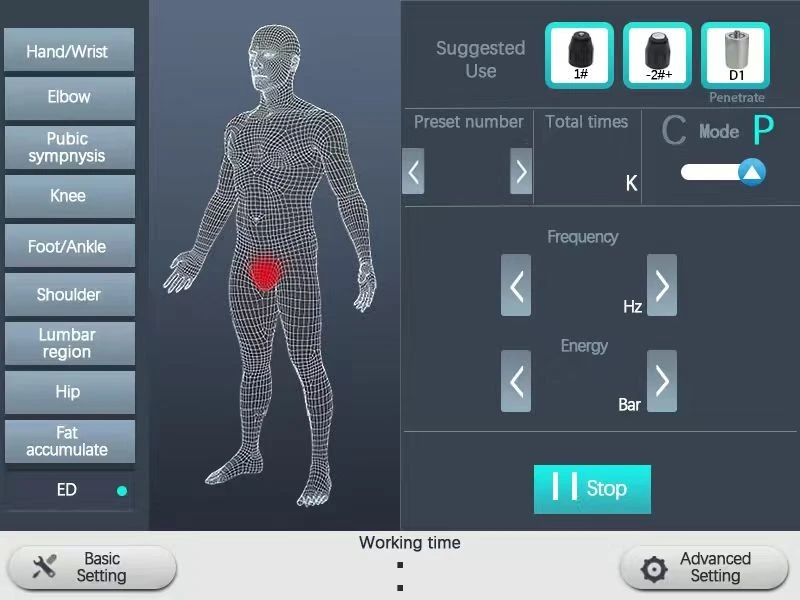

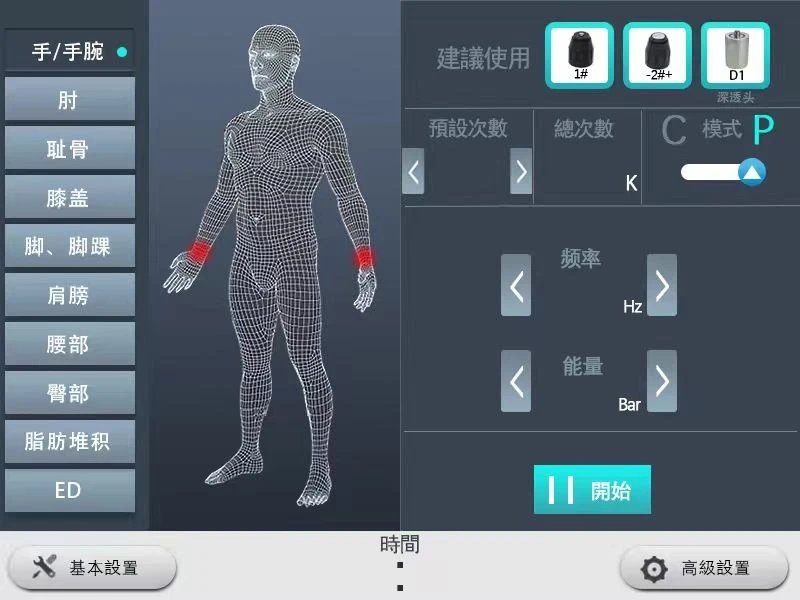

Interactive Human Body Mannequin UI: High-definition touch panel features an intuitive anatomical map covering 10 distinct body zones with one-touch parameter loading.
Dual Treatment Algorithms (C Mode & P Mode):
Comfort Mode (C Mode): Softer pressure progression and lower impact frequencies designed for sensitive patients and initial rehabilitation phases.
Professional Mode (P Mode): High-energy ballistic impact curves designed for chronic orthopedic conditions and deep calcifications.
6 Preload Impact Cycles: Automated interval alarms at 600, 1,000, 2,000, and 2,500 shocks ensure precise dosage compliance and prevent accidental over-treatment.
Ergonomic Shock-Damped Handpiece: Medical-grade aluminum barrel with an internal vibration-damping silicone sleeve minimizes operator wrist fatigue during back-to-back treatment sessions.
Technical Specifications
| Technical Parameter | Engineering Specification |
|---|---|
| Product Model | MNLT Pneumatic Air-Cooled Shockwave Platform |
| Operating Principle | Electronically-Controlled Ballistic Pneumatic Radial Shockwave |
| Cooling Architecture | Built-in High-Efficiency Air Cooling (Compressor-integrated) |
| Working Pressure Range | 0.5 Bar to 6.0 Bar (Adjustable in fine gradations) |
| Working Frequency Range | 1 Hz to 21 Hz (Continuous adjustment; 1–10 Hz for ED mode) |
| System Output Power | 282 VA |
| Input Power Supply | AC 220V–230V 50/60Hz / AC 110V 50/60Hz (Universal export ready) |
| Projectile Bullet Lifespan | ≥ 2,000,000 Impacts (Tool-assisted rapid field replacement) |
| Transmitter Configurations | 5 Standard Heads (1#–5#) + 4 Precision Heads (D2, D3, D4, D6) + D15#, D25# |
| Anatomical Preset Modes | 10 Body Regions (Hand/Wrist, Elbow, Pubic, Knee, Foot, Shoulder, Back, Hip, Fat, ED) |
| Operating Modes | C Mode (Comfort Mode) & P Mode (Professional Clinical Mode) |
| Preload Impact Setting | 6 Preloaded Dosing Options (600 / 1,000 / 2,000 / 2,500 impacts auto-stop) |
| Air Filtration System | Rear Dual Transparent Oil/Water Separators with Quick-Drain Valves |
| Chassis Dimensions & Portability | Compact benchtop medical chassis with integrated handpiece cradle |

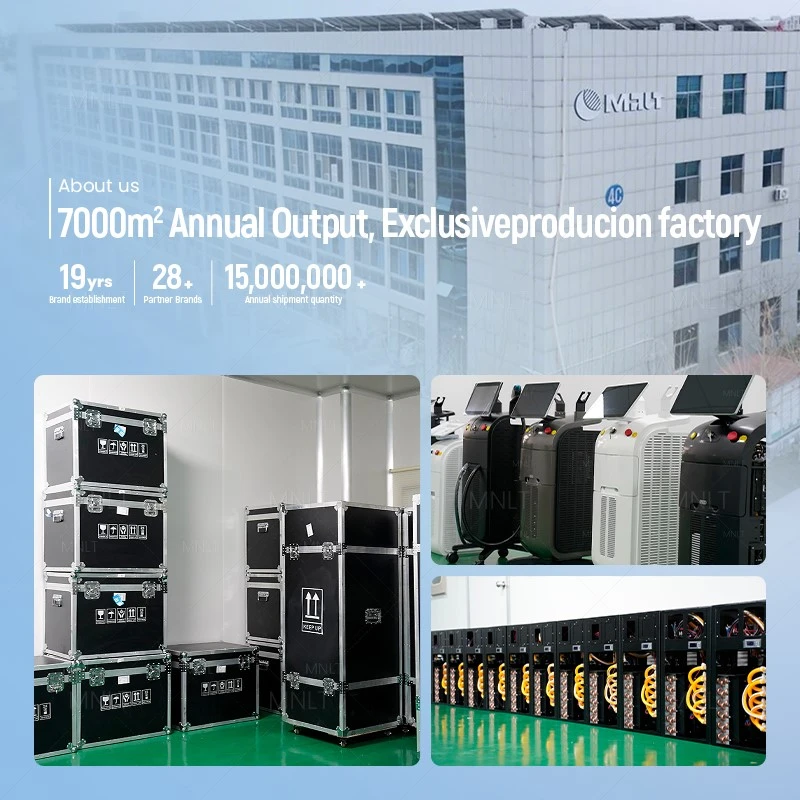

Factory Manufacturing & OEM/ODM Support
Engineered and manufactured by Shandong Moonlight Electronics Tech Co., Ltd.-a certified medical aesthetic and physical therapy equipment manufacturer with 16 years of FDA, Medical CE, ISO13485, and TGA-certified medical engineering excellence.
Zero Consumable Fees & Open Architecture: Operates with standard water-based acoustic coupling gel. No proprietary chip cards, RFID tags, or shot-limiting software paywalls.
Global OEM/ODM Customization: Custom color casing, bespoke brand silk-screening, custom software startup screens, and multi-language software translation available with low minimum order quantities (MOQ).
Manufacturer Backing & Warranty Protection:
2-Year Comprehensive Console Warranty covering internal air compressor, motherboard, and power supply.
48-Hour Rapid Spare Parts Dispatch: Worldwide courier delivery of spare bullets, O-rings, and applicator tips from overseas supply hubs.
Lifetime Clinical & Engineering Support: Direct access to senior biomechanical engineers and clinical video training tutorials.
Frequently Asked Questions & Inquiries
Frequently Asked Questions (FAQ)
Q1: What are the main clinical advantages of pneumatic ballistic shockwave over electromagnetic shockwave?
A: Pneumatic ballistic systems utilize compressed air to physically accelerate a projectile, delivering deeper radial acoustic energy (up to 6.0 Bar) and higher mechanical shear stress compared to typical electromagnetic devices. This makes pneumatic ESWT significantly more effective for breaking stubborn calcifications, loosening dense fibrotic scar tissue, and treating deep musculoskeletal pathologies.
Q2: How complicated is it to replace the internal projectile bullet after 2 million impacts?
A: Routine replacement takes under 3 minutes. Each machine includes a dedicated combination wrench. The operator simply unscrews the front applicator sleeve, slides out the exhausted bullet, inserts the replacement projectile, and tightens the sleeve back into place-no technical disassembly or factory return required.
Q3: Does the device require an external air compressor or water filling?
A: No. The system features an integrated, electronically controlled oil-free pneumatic compressor and self-contained forced-air cooling. It operates immediately upon plugging into standard AC wall power, eliminating external air tanks, water filling, and leakage hazards.
Q4: How does the exclusive ED protocol benefit men's health clinics?
A: The unit comes pre-programmed with a dedicated ED interface and specialized D6#, D15#, and D25# transmitters. Delivering low-intensity shockwaves at 0.5–2.0 Bar along the 5 anatomical zones of the penile shaft and crura promotes microvascular neovascularization, restoring natural blood flow with zero medication dependence or surgical downtime.
Request Factory Direct Quotation & Clinic Solutions
Upgrade your rehabilitation clinic, sports recovery center, or aesthetic practice with our high-return pneumatic air-cooled shockwave therapy workstation:
Factory Direct Pricing: Receive formal FOB/DDP wholesale price tiers within 2 hours.
Live Video Demonstration: Connect directly with our clinical equipment specialists for a hands-on live demo.
OEM/ODM Consultation: Inquire about personalized casing branding, custom colors, and custom clinic UI integration.
👉 Contact Our B2B Technical Engineering Team to request our comprehensive shockwave clinical manual, spare parts catalog, and distributor price lists.
